Status Enquiry
Provide switch on/off, illumination, current, voltage, power status information at any moment when an enquiry is made.
ZETA-Lite Outdoor innovates street lighting by delivering LPWAN coverage and energy-saving control on existing street lighting infrastructure in cities. It offers remote street lamp control as well as IoT connectivity simultaneously. Coverage for city-wide IoT applications can be deployed without incurring any additional cost. With lamppost distributed around cities, ZETA-Lite outdoor helps businesses and city councils create a powerful IoT environment across every corner of municipality.

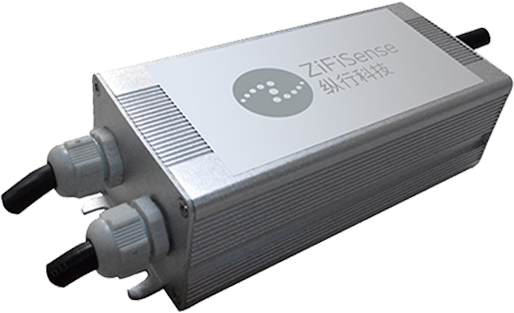

ZETA-Lite system builds energy-saving controller and ZETA mote or modules into every street light allowing multi-hop mesh access and distributed sensing through relays of ZETA nodes in a self-organising network.
Data are collected efficiently by a ZETA-Lite concentrator which connects all sensing information to ZETA-Lite PaaS built in the internet cloud for IoT asset management, lighting control, faulty detection and real-time information collection throughout the network.
- Command response time is 3-6 seconds
- 1-2km coverage range per lamppost @2.4kbps
- Single command can complete all street lamp inspection
- Effective Data collision detection and prevention
- Supply wireless portal for IoT
- Support low-power sensing
- Remote Upgrade – Platform Control Devices
- OTA Upgrade -Air Interface Control Devices
- Support Multiple Sub-GHz Bands
- Support 100bps-50kbps Data Rate
- Self-healing Core Network
- QoS Routing Optimisation
- Access Authentication
- Data Encryption
- MAC Address Filtering
- Support Frequency Hopping Communications
- Support Multi-channel Selection
Provide switch on/off, illumination, current, voltage, power status information at any moment when an enquiry is made.
Remote software/OTA upgrade for all lights, gateways in the cloud or through handheld devices.
Provide Geographic information base on Google/Baidu maps. Lights can be controlled directly on the map.
Data visualisation for energy usage and saving per day/month/year.
Automatic fault alarm, fault detection and diagnosis, and troubleshooting record tracking.
Inspection of any light or group of lights. Self-definable inspection cycle.
Remote control of any light or group of lights
